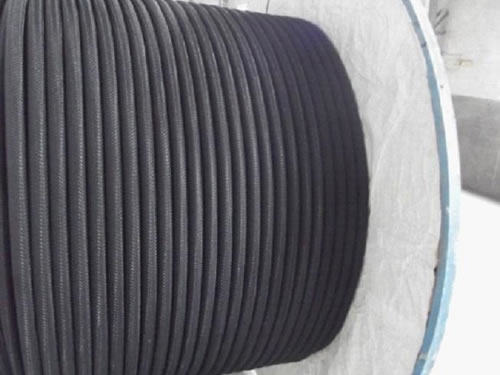

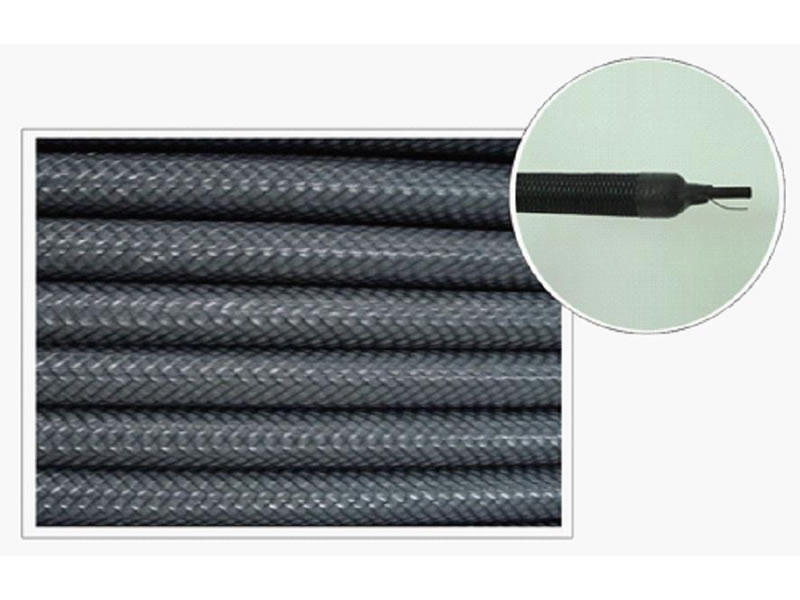

MMO/Ti Flexible Anode

Description:

MMO/Ti flexible anode is the new generation of flexible anode with a long life. Mixed metal oxide titanium flexible anode integrates the advantages of large current of MMO anode and excellent conductive performance of copper conductor cable. Due to its large current and small grounding resistance, it can be buried in the place far away from the anode structure. MMO/Ti flexible anode is especially suitable for the cathodic protection of high resistance region or pipeline with damaged coating. Mixed metal oxide titanium flexible anode can also be used in the impressed current cathodic protection of large storage tank floors. Because the anode itself contains coke powder, so it is not necessary to add fillers anymore which makes the installation be easy and convenient. The essence of MMO/Ti flexible anode is to use titanium wire to replace the conductive polymer cable between the original flexible anodes. MMO wire has good electrochemical performance. When the coke powder is consumed completely, mixed metal oxide titanium flexible anode can be used alone as auxiliary anode. Theoretically speaking, its life is much longer than flexible anode.

Compositions of MMO/Ti Flexible Anode:


Material

Environment

Test Item

Typical Value

Copper Wire 20℃ Resistance 1.55×10ˉ³Ω/m
Coke Coated Layer 23℃ Resistivity 0.5Ω.cm
Carbon Content 99.6%
Acid and Alkali Resistant Layer 23℃ Fracture Strength 980N
Abrasion Resistant Layer Stay in different electrolyte environments for six months Changes of tensile strength less than 20%

Specifications of Mixed Metal Oxide Titanium Flexible Anode:


Technical Parameters

TB39-52

Anode Diameter

39±2mm

MMO/Ti Anode Wire Diameter

≥0.8mm

Anode Design Life

≥40years

Anode Consumption (Including Filling)

≤6mg/A.a

Output Current (Maximum)

1500mA/m

Coating Thickness of Metal Oxide

≥ 6g/m2

Resistivity of Mixed Metal Oxides

10-5Ω.cm

Contact Resistance of Anode and Cable Joint

≤1.0 mΩ

Anode Resistance

≤0.007Ω∕m

Content of Coke Breeze Filler

≥ 98%

Coke Breeze Resistance

≤0.55 Ω·cm

Fabric Jacket Tube

Anticorrosion,permeable

Fabric Jacket Mesh

Wearproof,anti environmental temperature variability

Anode Weight

≥1.3kg/m

Anode Length(Each Unit)

500m(or made to order)
Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of MMO/Ti flexible anode in China. In addition to this mixed metal oxide titanium flexible anode, we are also engaged in producing conductive polymer flexible anode, silicon iron anode, MMO anode, graphite anode, etc. With about 12 years' production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
