Brazing Pin(Pin Brazing)

Description:

CORROCO Brazing Pin is ideally suited for many applications including continuity bonding between pipes, connecting measuring and test cables, and the installation of sacrificial anodes and test posts,Railways and metros,as well as Earthing industry,due to the ease and speed of installation, high mechanical strength and extremely low resistance.
The welding material used in the brazing pin through SGS inspection,no hazardous element(Pb,Cd,Co,etc.),ensure the user’s health.

Technical Specifications

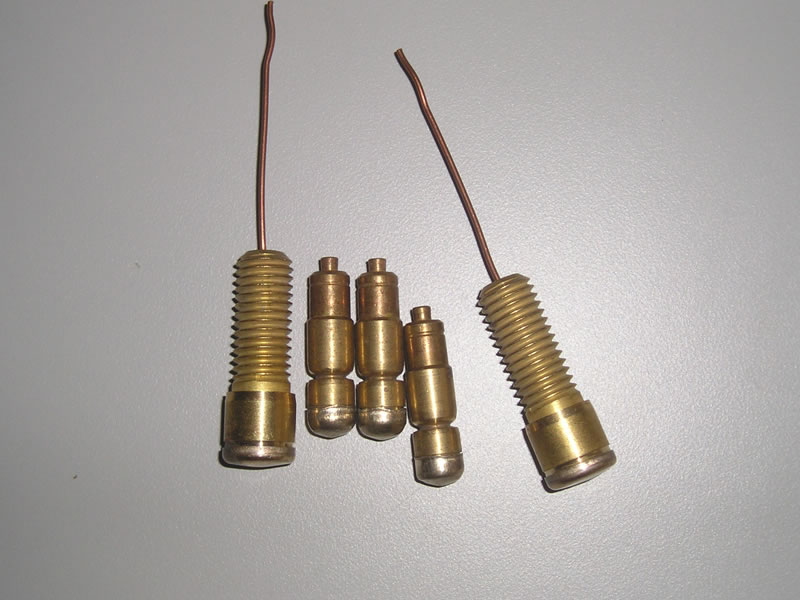

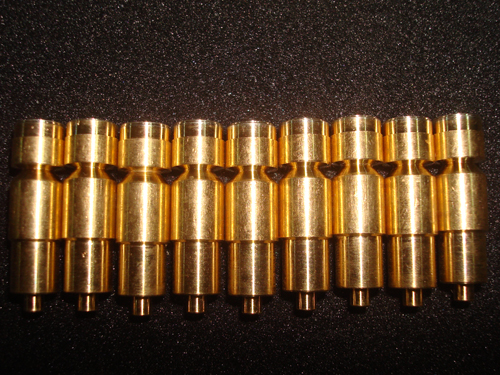

1. Brass Brazing Pin Specification

Cathodic Protection Type Size Remarks Material
BP-BC-80 Ø8 With Fuse Wire Brass
BP-BC-81 Ø8 Without Fuse Wire Brass
Cathodic Protection BP-BC-M8 M 8 Threaded, With Fuse Wire Brass
BP-BC-M10 M10 Threaded, With Fuse Wire Brass
BP-BC-M12 M12 Threaded, With Fuse Wire Brass

2. S.S316 Brazing Pin Specification

Cathodic Protection Type Size Remarks Material
BP-SS-M8 M8 Threaded, With Fuse Wire S.S316
BP-SS-M10 M10 Threaded, With Fuse Wire S.S316
BP-SS-M12 M12 Threaded, With Fuse Wire S.S316

3. Accessories

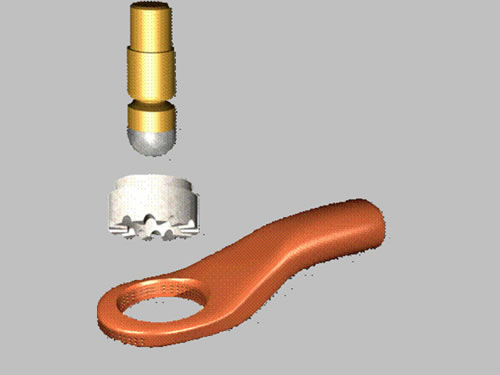

1. Ceramic Ferrule

2. Cable Connector

Cathodic Protection Cathodic Protection Cathodic Protection
Changsha Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of brazing pins in China. In addition to this welding pin, we are also engaged in producing CP wire and cable, test station, junction box, reference electrode, transformer rectifier, and other cathodic protection accessories. With 12 years’ production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
