Description:
Permanent reference electrodes provide accurate and reliable potential measurements on buried metallic structures. such as underground pipelines and storage tanks. Their placement in close proximity to protected structures permits readings which are more exact and less affected by fluctuating soil conditions than those obtained by portable cells.
The most common laboratory reference electrodes are the Cu/CuSO
4 electrode, Saturated Calomel Electrode (SCE) and the Silver/Silver Chloride (Ag/AgCl) electrodes.

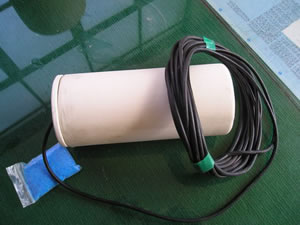

Specifications of Cu/CuSO4 Reference Electrode:
Exterior Size
|
Diameter 93 ×220mm
|
Chamber Material
|
Terra
|
Bare Weight
|
3KG
|
Cable
|
XLPE/PVC 1×6mm2 6M
|
Potential Excursion
|
+/- 10mV
|
Lifetime
|
15Years
|
Gross Weight
|
14KG
|
Packing
|
With 10KG backfill packed in sack bag
|
Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of reference electrode in China. In addition to this reference electrode for cathodic protection, we also supply brazing pin, CP wire and cable, test station, junction box, transformer rectifier, and other cathodic protection accessories. Based on 12 years' production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
