Description:

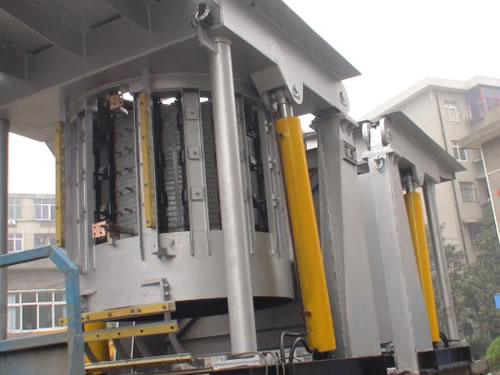

Coreless induction furnace is named relative to core induction furnace. The metal liquid is filled into a crucible, so it is also known as crucible furnace. The coreless induction melting furnace is one of the most important furnace types for cast iron foundries, for the whole non-ferreous industry and for special applications in steelworks. It is used either as a melting furnace, a holding furnace or as a casting furnace. Coreless induction furnace is characterised by melting temperature, less impurity pollution, uniform alloy components and good labor conditions. Compared to the core induction furnace, the coreless induction furnace changes metal species relatively easily. Besides, the coreless induction melting furnace is operated flexibly. However, its electricity and thermal efficiency is lower than core induction furnace. Because the surface temperature of coreless induction furnace is very low, it is not conducive to high-temperature slag melting. The coreless induction melting furnace is mainly composed of a ceramic crucible, which is surrounded by a cylindrical induction coil. This coil is operated either by mains or medium frequency electrical power which induces a strong current inside the metal. The coreless induction furnace has copper coils that are protected by a steel and magnetic shield. We adopt wooden boxes to avoid or reduce deformation during transportation.
Features of Coreless Induction Melting Furnace:
1. All our designs of coreless induction furnaces are finished by CAD that is accurate and reliable.
2. We adopt high-quality copper inductive coil and high-class insulating materials (up to 180°C).
3. The electric components are imported from joint ventures that guarantee reliable running.
4. The iron core adopts low loss and no orientation silicon steel sheet, so the coreless induction melting furnace generates very low loss.
5. Hydraulic pumps and valves are made from excellent companies to keep the coreless induction furnace tilt stable and reliable.
Parameters of Coreless Induction Melting Furnace:
|
Model
|
Capacity(t)
|
Power(kw)
|
Smelting Rate(t/h)
|
|
GWX0.75-150
|
0.75
|
150
|
0.8
|
|
GWX1.0-200
|
1.0
|
200
|
1.1
|
|
GWX1.5-250
|
1.5
|
250
|
1.4
|
|
GWX3.0-300
|
3.0
|
300
|
1.5
|
|
GWX6.0-400
|
6.0
|
400
|
1.7
|
|
GWX10.0-600
|
10.0
|
600
|
2.9
|
Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of coreless induction furnace (crucible furnace) in China. In addition to this coreless induction melting furnace, we also supply anode rod for water heater, hydrometallurgical electrode, core induction furnace, metallurgy technology and engineering, water valve, machining and parts, etc. Based on 12 years' production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
