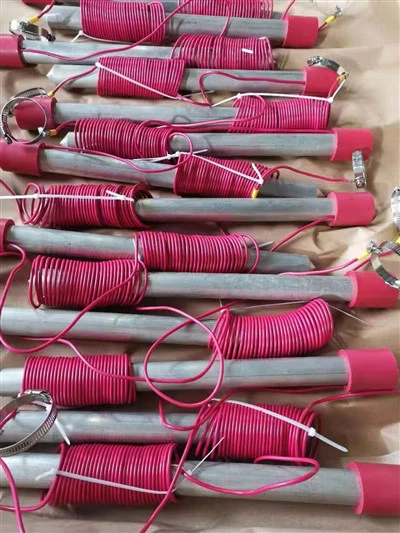

Portable Magnesium Ground Rod With 4ft 12AWG Wire

English

Spanish

Arabic

Description:

Magnesium ground rods are an excellent choice for people who are looking for a reliable and durable grounding solution. These ground rods are made from high-quality magnesium, which has excellent electrical conductivity and is resistant to corrosion and rust.

Advantages:

1 One of the most significant benefits of a magnesium ground rod is its durability. These ground rods are built to last, ensuring that your grounding system will remain effective and functioning for years to come. Additionally, they require very little maintenance and are easy to install, making them a cost-effective option for those looking to ground their electrical systems.

2 they also offer excellent electrical conductivity. This means that they allow electricity to flow freely through them, reducing the risk of damage to your electrical equipment and creating a safer electrical system overall.

3 The magnesium ground rod is its resistance to corrosion and rust. This makes it an excellent choice for use in harsh environments or areas with high levels of moisture or salt, which can corrode and damage other types of ground rods over time.

Application:

Magnesium anode rod can be used in water boiler, heat exchanger, water container, house heaters, RV heaters, water dispenser, heat plumbing, oil, natural gas, coal gas, et.It releases electrons into the water heater tank, which helps slow or prevent corrosion in the tank.

Composition of Extruded Magnesium Anode Rod

Grade	Mg	Mn	Zn	Al (max)	Si (max)	Cu (max)	Ni (max)	Fe (max)	Other Imp. (max)
Grade	Mg	Mn	Zn	Al (max)	Si (max)	Cu (max)	Ni (max)	Fe (max)	Each	Total
MGAZ31B	Balance	0.2-1.0	0.6-1.4	2.5-3.5	0.08	0.01	0.001	0.002	0.05	0.30
MGAZ63B	Balance	0.15-0.60	2.5-3.5	5.3-6.7	0.08	0.01	0.001	0.003	0.05	0.30
MGM1C	Balance	0.15-1.3	-	<0.01	0.08	0.01	0.001	0.01	0.05	0.30

Specification:

Anode Dia(mm)	Core Dia(mm)	Thread	Unit Weight(g/cm)
Ø13.97	Ø2.0	NPT-ASTM/BSP/G/R	2.83
Ø19.05	Ø3.4	NPT-ASTM/BSP/G/R	5.66
Ø21.34	Ø3.4	NPT-ASTM/BSP/G/R	6.85
Ø26.67	Ø3.4	NPT-ASTM/BSP/G/R	10.42
Ø33.40	Ø3.4	NPT-ASTM/BSP/G/R	16.08
Ø39.65	Ø4.8	NPT-ASTM/BSP/G/R	23.07
Ø51.40	Ø4.8	NPT-ASTM/BSP/G/R	37.96

Electrochemical properties of Extruded Magnesium Anode Rod

Grade	Open-Circuit Voltage (-v respect to Cu/CuSO4)	Close-Circuit Voltage (-v respect to Cu/CuSO4)	Actual Capacity (A.h/Kg)	Current Efficiency %( Cu/CuSO4)
MGAZ31B	1.57-1.67	1.47-1.57	≥1210	≥55
MGAZ63B	1.57-1.67	1.52-1.57	≥1210	≥55
MGM1C	1.77-1.82	1.64-1.69	≥1100	≥50

Packing:

Hanging wooden boxes,suitable for forker and sea freight,And the deformation is avoided.

We have been widely recognised by a number of industries for manufacturing and supplying high quality and efficient anodes.

We are a leading manufacturer of corrosion control products including magnesium anodes, aluminum anodes, high silicon cast iron (HSCI) and sacrificial anodes for the marine, construction, power and oil and gas industries.

Our rigorous manufacturing and testing methods in the casting process ensure optimum anode performance and lifetime, thus guaranteeing a high quality product.
