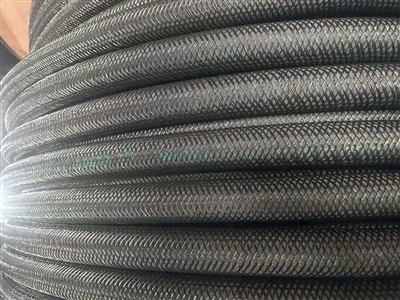

Piggyback Liner MMO Anode

English

Spanish

Arabic

Description:

MMO/Ti flexible anode is based on MMO/Ti wire. It has the technical characteristics of high current utilization efficiency, low stray current interference, strong current shock resistance, high drainage density and long service life. It is a new generation of flexible anodes.

MMO/Ti flexible anodes include conventional flexible anodes and EcoFlex flexible anodes. Special flexible anodes can replace traditional deep well and shallow anode ground beds, and can also be used for stray current interference mitigation.

The conventional MMO/Ti flexible anode is mainly composed of MMO/Ti anode wire, cable, coke backfill, acid-resistant woven layer and external mechanically braided protective mesh layer.

EcoFlex MMO/Ti flexible anode is composed of MMO/Ti anode wire, cable, special exhaust pipe, coke filler, wrapped acid-resistant fabric and external mechanical braided protective mesh layer. It is suitable for replacing prepackaged shallow buried anode and deep well anode

Specification

Technical parameters	TB39-52
Anode diameter	39±2mm
Conductive polymer average thick	≥4mm
Conductive polymer volume resistance	1.5Ω.cm
In the 1mol/L sulfuric acid solution, 50 times of the normal current for electrolysis experiment	≥14 days
Put the 0.2 meter sample into the NaCl solution whose quality percentage is 3%,add 40mA current,test for a month	Consumption of coke breeze is 3% of radius of the visible inlet ring
Output current(max)	1500mA/m
Anode design life	≥40 years
Content of Coke breeze filler	≥ 98%
Coke breeze resistance	≤0.55 Ω·cm
Fabric jacket tube	Anticorrosion,permeable
Fabric jacket mesh	Wearproof,anti environmental temperature variability
Anode weight	≥1.3kg/m
Anode length(each unit)	500m(or made to order)

Composition

Material	Environment	Testing item	Typical value
Copper wire	20℃	Resistance	1.55×10¯³Ω∕m
Conductive polymer	23℃	Resistance rate	1.5Ω.cm
	23℃	Tensile strength	13
	23℃	Rupture and elongation rate	350
Coke packing layer	23℃	Resistance rate	0.5Ω.㎝
Coke packing layer		Carbon content	99.5%
Acid and alkali proof weaving layer	23℃	Rupture intensity	980N
Wear proof weaving web	In different electrolyte environment for 6 months	Tensile strength changes less than 20 %
