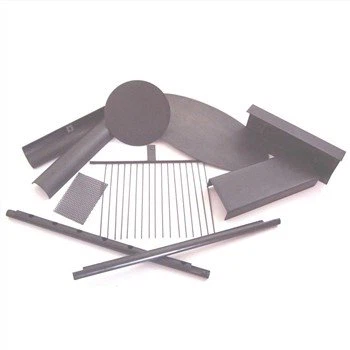

Mixed Metal Oxide Anode

Description:

Mixed metal oxide anodes (MMO anodes) are anodes made by titanium coated with mixed metal oxide. It is a crystalline electrically-conductive coating that activates the titanium and enables it to function as an anode. CORROCO International Industrial Co., Ltd provides high-performance mixed metal oxides (MMO anodes) for clients, which can be applied to electrosynthesis, chlorate and perchlorate production, electro-chlorination, electroplating, cathodic protection, sewage treatment of substrate, and so on.

Advantage:

1. This impressed current anode is of light weight.
2. MMO coatings have high chemical stability even in environments with very low PH values.
3. The coating of mixed metal oxide anodes is not affected by chlorine.
4. The wear rate of the MMO anode is extremely low and uniform. It is between 1 and 6 milligrams/ampere per year.
5. The anode dimensions remain nearly constant.
6. The mixed metal oxide can be operated at high current density, such as 2000A/m².
7. It has superior electrically-conductive performance (10-7Ω·m)

Application

MMO coated anode rods have an extremely low consumption rate , they are widely used for cathodic protection in soil, sea, mud, sewage and fresh water environments. Such as Process vessels, Water condenser boxes, Heat exchangers, Water intake structures, Groundbed applications, etc.

Composition of MMO Anode:

We provide two coating systems for different environment: Ir-Ta system, Ir-Ru system.

Specification:

Parameters:

Packing:

Wooden boxes,suitable for forker and sea freight.
