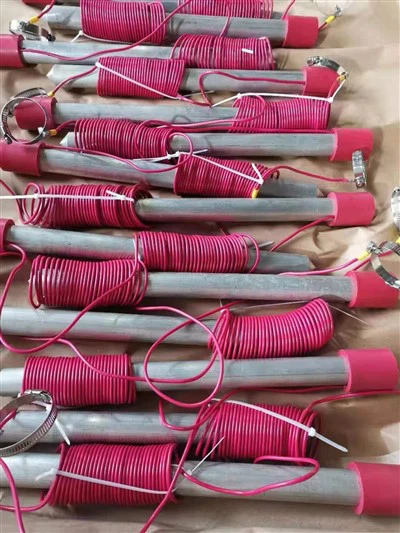

Grounding Rod With 20 Red Wire For Grounded Earth Connected Products

English

Spanish

Arabic

Description:

Locating an underground utility using tracer wire is accomplished by placing a low voltage charge on a target line. When the tracer wire system is grounded properly, the charge is pulled down the line, and a complete electrical circuit is created.

Advantages:

1.Magnesium anode rods cteate the higher voltage they create during the sacrificial process.
It can protect the water heater with low cost.
2. Extruded Magnesium anodes have high surface and length ratios in relation to cross sectional size. This allows these anodes to deliver a greater amount of current per weight than cast anodes

Application:

Magnesium anode rod can be used in water boiler, heat exchanger, water container, house heaters, RV heaters, water dispenser, heat plumbing, oil, natural gas, coal gas, et.It releases electrons into the water heater tank, which helps slow or prevent corrosion in the tank.

Composition of Extruded Magnesium Anode Rod

Grade	Mg	Mn	Zn	Al (max)	Si (max)	Cu (max)	Ni (max)	Fe (max)	Other Imp. (max)
Grade	Mg	Mn	Zn	Al (max)	Si (max)	Cu (max)	Ni (max)	Fe (max)	Each	Total
MGAZ31B	Balance	0.2-1.0	0.6-1.4	2.5-3.5	0.08	0.01	0.001	0.002	0.05	0.30
MGAZ63B	Balance	0.15-0.60	2.5-3.5	5.3-6.7	0.08	0.01	0.001	0.003	0.05	0.30
MGM1C	Balance	0.15-1.3	-	<0.01	0.08	0.01	0.001	0.01	0.05	0.30

Specification:

Anode Dia(mm)	Core Dia(mm)	Thread	Unit Weight(g/cm)
Ø13.97	Ø2.0	NPT-ASTM/BSP/G/R	2.83
Ø19.05	Ø3.4	NPT-ASTM/BSP/G/R	5.66
Ø21.34	Ø3.4	NPT-ASTM/BSP/G/R	6.85
Ø26.67	Ø3.4	NPT-ASTM/BSP/G/R	10.42
Ø33.40	Ø3.4	NPT-ASTM/BSP/G/R	16.08
Ø39.65	Ø4.8	NPT-ASTM/BSP/G/R	23.07
Ø51.40	Ø4.8	NPT-ASTM/BSP/G/R	37.96

Electrochemical properties of Extruded Magnesium Anode Rod

Grade	Open-Circuit Voltage (-v respect to Cu/CuSO4)	Close-Circuit Voltage (-v respect to Cu/CuSO4)	Actual Capacity (A.h/Kg)	Current Efficiency %( Cu/CuSO4)
MGAZ31B	1.57-1.67	1.47-1.57	≥1210	≥55
MGAZ63B	1.57-1.67	1.52-1.57	≥1210	≥55
MGM1C	1.77-1.82	1.64-1.69	≥1100	≥50

Packing:

Hanging wooden boxes,suitable for forker and sea freight,And the deformation is avoided.

We have been widely recognised by a number of industries for manufacturing and supplying high quality and efficient anodes.

We are a leading manufacturer of corrosion control products including magnesium anodes, aluminum anodes, high silicon cast iron (HSCI) and sacrificial anodes for the marine, construction, power and oil and gas industries.

Our rigorous manufacturing and testing methods in the casting process ensure optimum anode performance and lifetime, thus guaranteeing a high quality product.
