3LB Magnesium Anodes Prepacekd Electrode

English

Spanish

Arabic

Description:

The pre-packaged form of sacrificial anodes electorde usually consists of a stainless steel canister that contains an inner core of magnesium alloy anode. The top of the canister is usually fitted with an insulated cable or a steel connection that leads to the metal to be protected. The anode is simply wired into the circuit and it will begin to corrode away, sacrificing itself to protect the metal structure.

Advantage:

The magnesium alloy anodes have a very high electrical potential, which causes them to be the better choice for preventing corrosion, as they are more active than other metals. Furthermore, they are much cheaper than other anodes and can be purchased in pre-packaged form, which makes them easier to use.

Application:

The pre-packaged anodes electrode can be used in marine applications where corrosion is a concern, such as on mooring chains, buoys and piping. They are conveniently packaged and easy to install, which makes them ideal for a variety of uses. Furthermore, the magnesium alloy anodes are much less expensive than other anodes and provide a higher level of corrosion protection.

Chemical Compositions of Cast Magnesium Anodes:

Element		Anode type
Element		High Potential	AZ63B(HIA)	AZ63C(HIB)	AZ63D(HIC)	AZ31
Mg		Bal	Bal	Bal	Bal	Bal
Al		<0.01	5.30-6.70	5.30-6.70	5.0-7.0	2.70-3.50
Zn		-	2.50-3.50	2.50-3.50	2.0-4.0	0.70-1.70
Mn		0.50-1.30	0.15-0.70	0.15-0.70	0.15-0.70	0.15-0.60
Si(max)		0.05	0.10	0.30	0.30	0.05
Cu(max)		0.02	0.02	0.05	0.10	0.01
Ni(max)		0.001	0.002	0.003	0.003	0.003
Fe(max)		0.03	0.005	0.005	0.005	0.005
Other Imp.(max)	Each	0.05	-	-	-	-
Other Imp.(max)	Total	0.30	0.30	0.30	0.30	0.30

Electrochemical Properties

TYPE ITEM	Open Voltage (-V,SCE)	Close Voltage (-V,SCE)	Actual Capacity (A.h/LB)	Efficiency %
High Potential	1.70-1.78	1.50-1.60	>500	>50
AZ63	1.50-1.55	1.45-1.50	>550	>55
AZ31	1.50-1.55	1.45-1.50	>550	>55

Parameter:

D type	Type	Weight Kg(ib)	Dimension mm(inch)
			A		B		C
	9D2	4.082(9)	69.9(2 3/4)		549.3(21 5/8)		76.2(3)
	14D2	6.350(14)	69.9(2 3/4)		850.9(33 1/2)		76.2(3)
	20D2	9.072(20)	69.9(2 3/4)		1212.9(47 3/4)		76.2(3)
	9D3	4.082(9)	88.9(3 1/2)		352.4(13 7/8)		95.3(3 3/4)
	17D3	7.711(17)	88.9(3 1/2)		641.4(25 1/4)		95.3(3 3/4)
	32D5	14.515(32)	139.7(5 1/2)		504.8(19 7/8)		146.1(5 3/4)
	48D5	21.772(48)	139.7(5 1/2)		765.2(30 1/8)		146.1(5 3/4)
	60D4	27.216(60)	114.3(4 1/2)		114.3(4 1/2)		1460.5(57 1/2)
C type	Type	Diameter (mm)	Length(mm)				Weight(Kg)
			High potential		AZ63
	C25	75	336		325		2.56
	C36	114	202		193		3.7
	C41	114	230		220		4.2
	C77	114	431		412		7.8
	C100	114	560		536		10.2
	C145	146	494		472		14.7
	C227	178	520		497		22.9
	C274	114	1528		1462		28.2
S type	Type	Weight Kg(ib)	Dimension mm(inch)
			A	B		C		L
	3S3	1.4(3)	3 4/5(96.5)	3(76.2)		3(76.2)		4.7(119.4)
	5S3	2.3(5)	3 4/5(96.5)	3(76.2)		3(76.2)		7.7(195.6)
	9S2	4.1(9)	2 4/5(71.1)	2(50.8)		2(50.8)		28(711.2)
	9S3	4.1(9)	3 4/5(96.5)	3(76.2)		3(76.2)		13.6(345.4)
	17S2	7.7(17)	2 4/5(71.1)	2(50.8)		2(50.8)		52.5(1333.5)
	17S3	7.7(17)	3 4/5(96.5)	3(76.2)		3(76.2)		25.6(650.2)
	17S4	7.7(17)	4(101.6)	3 1/5(81.3)		4(101.6)		18(457.2)
	20S2	9.1(20)	2 4/5(71.1)	2(50.8)		2(50.8)		62(1574.8)
	32S3	14.5(32)	3 4/5(96.5)	3(76.2)		3(76.2)		47(1193.8)
	32S5	14.5(32)	5(127.0)	4 1/5(106.7)		5(127.0)		21.2(538.5)
	40S3	18.1(40)	3 4/5(96.5)	3(76.2)		3(76.2)		60(1524.0)
	48S5	21.8(48)	5(127.0)	4 1/5(106.7)		5(127.0)		31.5(800.1)
	60S4	27.2(60)	4(101.6)	3 1/5(81.3)		4(101.6)		62(1574.8)
D type	Type	Weight Kg(ib)	Dimension mm(inch)
			A		B		C
	9D2	4.082(9)	69.9(2 3/4)		549.3(21 5/8)		76.2(3)
	14D2	6.350(14)	69.9(2 3/4)		850.9(33 1/2)		76.2(3)
	20D2	9.072(20)	69.9(2 3/4)		1212.9(47 3/4)		76.2(3)
	9D3	4.082(9)	88.9(3 1/2)		352.4(13 7/8)		95.3(3 3/4)
	17D3	7.711(17)	88.9(3 1/2)		641.4(25 1/4)		95.3(3 3/4)
	32D5	14.515(32)	139.7(5 1/2)		504.8(19 7/8)		146.1(5 3/4)
	48D5	21.772(48)	139.7(5 1/2)		765.2(30 1/8)		146.1(5 3/4)
	60D4	27.216(60)	114.3(4 1/2)		114.3(4 1/2)		1460.5(57 1/2)
C type	Type	Diameter (mm)	Length(mm)				Weight(Kg)
			High potential		AZ63
	C25	75	336		325		2.56
	C36	114	202		193		3.7
	C41	114	230		220		4.2
	C77	114	431		412		7.8
	C100	114	560		536		10.2
	C145	146	494		472		14.7
	C227	178	520		497		22.9
	C274	114	1528		1462		28.2
S type	Type	Weight Kg(ib)	Dimension mm(inch)
			A	B		C		L
	3S3	1.4(3)	3 4/5(96.5)	3(76.2)		3(76.2)		4.7(119.4)
	5S3	2.3(5)	3 4/5(96.5)	3(76.2)		3(76.2)		7.7(195.6)
	9S2	4.1(9)	2 4/5(71.1)	2(50.8)		2(50.8)		28(711.2)
	9S3	4.1(9)	3 4/5(96.5)	3(76.2)		3(76.2)		13.6(345.4)
	17S2	7.7(17)	2 4/5(71.1)	2(50.8)		2(50.8)		52.5(1333.5)
	17S3	7.7(17)	3 4/5(96.5)	3(76.2)		3(76.2)		25.6(650.2)
	17S4	7.7(17)	4(101.6)	3 1/5(81.3)		4(101.6)		18(457.2)
	20S2	9.1(20)	2 4/5(71.1)	2(50.8)		2(50.8)		62(1574.8)
	32S3	14.5(32)	3 4/5(96.5)	3(76.2)		3(76.2)		47(1193.8)
	32S5	14.5(32)	5(127.0)	4 1/5(106.7)		5(127.0)		21.2(538.5)
	40S3	18.1(40)	3 4/5(96.5)	3(76.2)		3(76.2)		60(1524.0)
	48S5	21.8(48)	5(127.0)	4 1/5(106.7)		5(127.0)		31.5(800.1)
	60S4	27.2(60)	4(101.6)	3 1/5(81.3)		4(101.6)		62(1574.8)

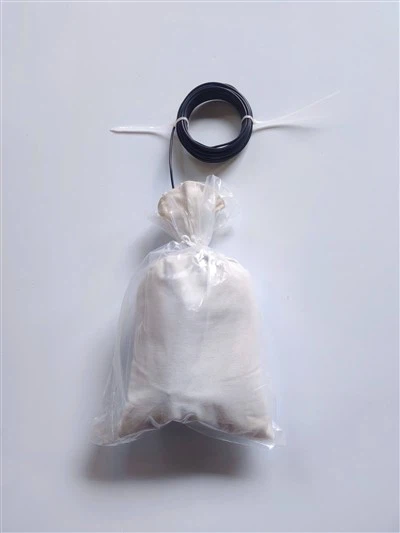

Prepackaged Mg anode:

CIIC can also supply prepackaged Mg anode and cable connection special for our clients.
Standard backfill:Gypsum 75% Bentonite 20% Sodium Sulphate 5%.
